黄色覆盖膜
- 胶类型：改性环氧胶系
- 东溢型号：DCIB
- 应用场景：车载/医疗/电子
- 简 介：用作柔性电路板保护膜或笔记本电脑电池保护膜等
产品特性：
用作柔性电路板保护膜或笔记本电脑电池保护膜等

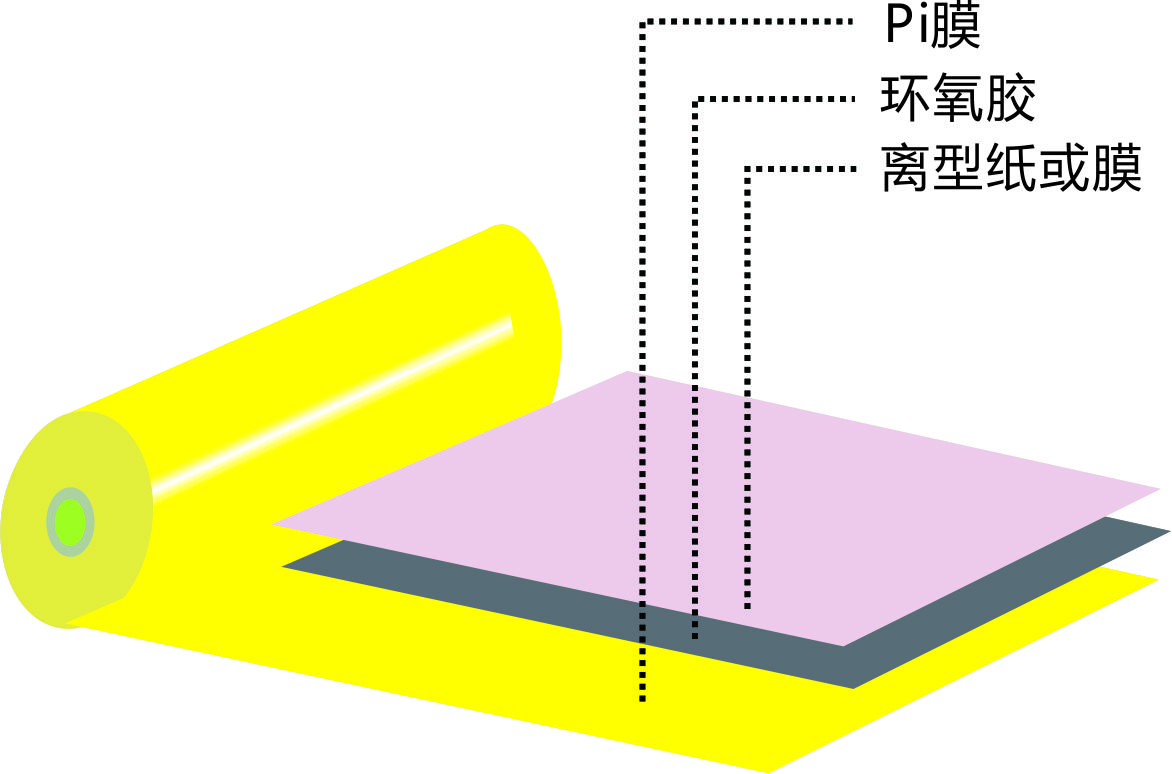

产品结构：
应用场景：
electron
摄像头
灯条
产品参数：
| 东溢型号 | PI厚度(um) | 胶厚(um) | 包装规格 | |
| DY model | PI thickness | AD thickness | Packing | |
| DCIBT0861R | 7.5 | 7.5 | 250mm*200m | |
| DCIBT1061R | 7.5 | 10 | 250mm*200m | |
| DCIBT1061L | 7.5 | 10 | 250mm*200m | |
| DCIB00861L | 12.5 | 8 | 250mm*200m | |
| DCIB01061L | 12.5 | 10 | 250mm*200m | |
| DCIB01061K | 12.5 | 10 | 250mm*200m | |
| DCIB01541R | 12.5 | 17 | 250mm*200m | |
| DCIB01541L | 12.5 | 17 | 250mm*200m | |
| DCIB01561L | 12.5 | 17 | 250mm*200m | |
| DCIB01561T | 12.5 | 17 | 250mm*200m | |
| DCIB01561K | 12.5 | 17 | 250mm*200m | |
| DCIB01561R | 12.5 | 17 | 250mm*200m | |
| DCIB01841L | 12.5 | 18 | 250mm*200m | |
| DCIB02041L | 12.5 | 20 | 250mm*200m | |
| DCIB02061K | 12.5 | 20 | 250mm*200m | |
| DCIB02061L | 12.5 | 20 | 250mm*200m | |
| DCIB02561L | 12.5 | 25 | 250mm*200m | |
| DCIB02541T | 12.5 | 25 | 250mm*200m | |
| DCIB02541L | 12.5 | 25 | 250mm*200m | |
| DCIB02541R | 12.5 | 25 | 250mm*200m | |
| DCIB02561K | 12.5 | 25 | 250mm*200m | |
| DCIB03061L | 12.5 | 30 | 250mm*200m | |
| DCIB03041L | 12.5 | 30 | 250mm*200m | |
| DCIB03041K | 12.5 | 30 | 250mm*200m | |
| DCIB03561L | 12.5 | 35 | 250mm*200m | |
| DCIB04041L | 12.5 | 40 | 250mm*200m | |
| DCIB04041K | 12.5 | 40 | 250mm*200m | |
| DCIB04061L | 12.5 | 40 | 250mm*200m | |
| DCIB05042L | 12.5 | 50 | 500mm*100m | |
| DCIB06541L | 12.5 | 65 | 250mm*200m | |
| DCIB06562L | 12.5 | 65 | 500mm*100m | |
| DCIB12541L | 25 | 25 | 250mm*200m | |
| DCIB12542L | 25 | 25 | 500mm*100m | |
| DCIB12561K | 25 | 25 | 250mm*200m | |
| DCIB12561L | 25 | 25 | 250mm*200m | |
| DCIB12541R | 25 | 25 | 250mm*200m | |
| DCIB12521D | 25 | 25 | 250mm*200m | |
| DCIB13021D | 25 | 30 | 250mm*200m | |
| DCIB13041L | 25 | 30 | 250mm*200m | |
| DCIB13541L | 25 | 35 | 250mm*200m | |
| DCIB13561L | 25 | 35 | 250mm*200m | |
| DCIB13561R | 25 | 35 | 250mm*200m | |
| DCIB13561FF | 25 | 35 | 250mm*100m | |
| DCIB13562FF | 25 | 35 | 500mm*100m | |
| DCIB13861F | 25 | 38 | 250mm*200m | |
| DCIB13861L | 25 | 38 | 250mm*200m | |
| DCIB14041L | 25 | 40 | 250mm*200m | |
| DCIB15042L | 25 | 50 | 500mm*100m | |
| DCIB15061L | 25 | 50 | 250mm*200m | |
| DCIB15061R | 25 | 50 | 250mm*200m | |
| DCIB15062R | 25 | 50 | 500mm*100m | |
| DCIB15062FF | 25 | 50 | 500mm*100m | |
| DCIB1506KTY | 25 | 50 | 125mm*200m | |
| DCIB1756KTY | 25 | 75 | 125mm*200m | |
| DCIB17561L | 25 | 75 | 250mm*200m | |
| DCIB17561R | 25 | 75 | 250mm*200m | |
| DCIB22542L | 50 | 25 | 500mm*100m | |
| DCIB22561L | 50 | 25 | 250mm*200m | |
| DCIB22561R | 50 | 25 | 250mm*200m | |
| DCIB23541FF | 50 | 35 | 250mm*200m | |
| DCIB23561L | 50 | 35 | 250mm*200m | |
| DCIB24061R | 50 | 40 | 250mm*200m | |
| DCIB24561R | 50 | 45 | 250mm*200m | |
| DCIB25041R | 50 | 50 | 250mm*200m | |
| DCIB25042R | 50 | 50 | 500mm*100m | |
| DCIB25042L | 50 | 50 | 500mm*100m | |
| DCIB27541FF | 50 | 75 | 250mm*200m | |
| DCIBT3061LW | 7.5 | 30 | 250mm*200m | |
| DCIBT3062LW | 7.5 | 30 | 500mm*100m | |
| DCIB04081L | 12.5 | 40 | 250mm*200m | |
| DCIB05081L | 12.5 | 50 | 250mm*100m | |
| DCIBT1061RW | 7.5 | 10 | 250mm*200m | |
| DCIBT1561RW | 7.5 | 17 | 250mm*200m | |
| DCIBT3061LW | 7.5 | 30 | 250mm*200m | |
| DCIBT3062LW | 7.5 | 30 | 500mm*100m | |
| DCIBT4062LW | 7.5 | 40 | 500mm*100m | |
| DCIB01561KW | 12.5 | 17 | 250mm*200m | |
| DCIB01561VW | 12.5 | 17 | 250mm*200m | |
| DCIB02061KW | 12.5 | 20 | 250mm*200m | |
| DCIB02061LW | 12.5 | 20 | 250mm*200m | |
| DCIB02561KW | 12.5 | 25 | 250mm*200m | |
| DCIB02561LW | 12.5 | 25 | 250mm*200m | |
| DCIB03061KW | 12.5 | 30 | 250mm*200m | |
| DCIB03061LW | 12.5 | 30 | 250mm*200m | |
| DCIB03561LW | 12.5 | 35 | 250mm*200m | |
| DCIB04061KW | 12.5 | 40 | 250mm*200m | |
| DCIB04060LW | 12.5 | 40 | 240mm*200m | |
| DCIB04061LW | 12.5 | 40 | 250mm*200m | |
| DCIB04041LW | 12.5 | 40 | 250mm*200m | |
| DCIB04062LW | 12.5 | 40 | 500mm*100m | |
| DCIB05061LW | 12.5 | 50 | 250mm*200m | |
| DCIB12561LW | 25 | 25 | 250mm*200m | |
| DCIB12561RW | 25 | 25 | 250mm*200m | |
| DCIB13061LW | 25 | 30 | 250mm*200m | |
| DCIB13061RW | 25 | 30 | 250mm*200m | |
| DCIB13561LW | 25 | 35 | 250mm*200m | |
| DCIB13561RW | 25 | 35 | 250mm*200m | |
| DCIB14061LW | 25 | 40 | 250mm*200m | |
| DCIB15061LW | 25 | 50 | 250mm*200m | |
| DCIB25061LW | 50 | 50 | 250mm*200m | |
| DCIB25061RW | 50 | 50 | 250mm*200m |
